Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans

Brand Name: BIGFANS
Model Number: SFFCA73
MOQ: 10 Sets
Price: Can Be Negotiable
Payment Terms: T/T,L/C
Supply Ability: 1000 Per Month
Detail Information
Place of Origin:
Wuhan, China
Certification:
CE&ISO
Control Options:
Remote Control
Noise Level:
40dB
Blade Materia:
Aviation Magnesium-Aluminum Alloy Material
Size:
2.5-7.3M Diameters
Motor Type:
PMSM (Permanent Magnet Synchronous Motor)
Power Supply:
Single/Three-phase 220V/380V
Fan Blades:
5/6/8 (Optional)
Application:
Warehouses, Factories, Gymnasiums, Distribution Centers, Aircraft Hangars, Agricultural Buildings
Usage:
Industrial Ventilation
Packaging Details:
Wooden Box
Supply Ability:
1000 Per Month
Product Description

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans

Product Description:

Warehouse Ventilation

Maximize Air Circulation with Our Industrial Drum Fans – Reduce Heat & Humidity in Your Warehouse. 3-Phase Motor, 360° Adjustable Tilt, IP65 Rated.


Factory Cooling

High-Velocity Ceiling Fans for Industrial Workplaces – Direct-AC Drive Technology, 20% Longer Lifespan Than Standard Models.

Features:

1. Lower noise level

2. Wider blades

3. Higher air volume

4. More energy efficient

5. Improved air circulation and distribution

Technical Parameters:

DIAMETER
8ft(2.5m)
12ft(3.8m)
16ft(5.0m)
20ft(6.2m)
24ft(7.3m)
MODEL
SFFCA25
SFFCA38
SFFCA50
SFFCA62
SFFCA73
AIR VOLUME
6500m³/min 8600m³/min
12050m³/min
13100m³/min 14060m³/min
MAXIMUM SPEED
140RPM
100RPM
70RPM
60RPM
55RPM
WEIGHT
35Kg
51Kg
75Kg
90Kg
127Kg
MOTOR POWER
0.3kw
0.4kw
1.1kw
1.1kw
1.5kw
FULL LOAD CURRENT
1.8AMPS/220V
2.0Amps/380v 2.3Amps/220v
2.4Amps/380v 3.2Amps/220v
3.0Amps/380v 3.5Amps/220v
3.5Amps/380v 5.5Amps/220v


Basic technical parameters: Model SFFCA73 (PMSM SERIES)

No. Main Configuration Description Photo

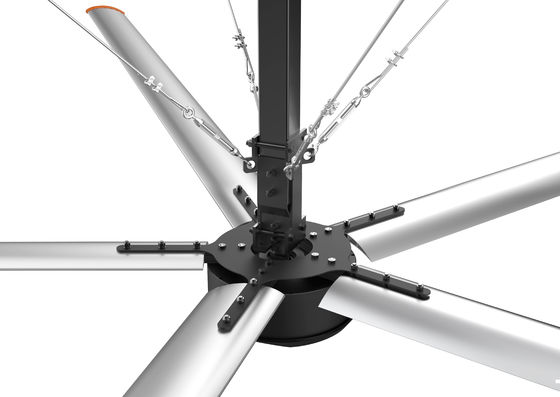

1 Motor

1. Industry's top PMSM motor; Power: 1.5kw; Insulation class: F, 50/60HZ;

2. Energy efficiency rating IE2; Operating noise less than 40dB;

3. No gear box, no oil change, truly maintenance-free;

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 0

2

Electrical

control system

Built-in safety protection module, Control system: Built-in safety protection module, automatically cut off the output in the event of an accident.

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 1

3 Blades Our blade is made of 6063T5 special high-strength aviation magnesium-aluminum alloy material, which is extruded into one piece.

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 2



Applications:

Industrial Fan Applications – Key Use Cases

Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 3

Support and Services:

The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:

- Installation assistance to ensure proper setup and operation of the fan.

- Troubleshooting guidance for any technical issues that may arise during operation.

- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.

- Warranty support to address any defects or malfunctions covered under the product warranty.



Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 4

Packing and Shipping:

Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.


Maintenance Free PMSM Motor 1.5KW Waterproof Big Industrial Ceiling HVLS 12ft 16ft 20ft 24ft Big Fans 5

FAQ:

Q: Are you factory or trading company?
A: We are factory which established more than 12 years.


Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.


Q: Where is the HVLS Industrial Fan manufactured?

A: The fan is manufactured in Wuhan, China.


Q: What is your delivery time?
A: Usually we have stock, delivery time within 7 working days.
If there is customized requirement, time is negotiable.

Q: What other services can you provide?
A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.
Accepted payment type: T/T, L/C;
